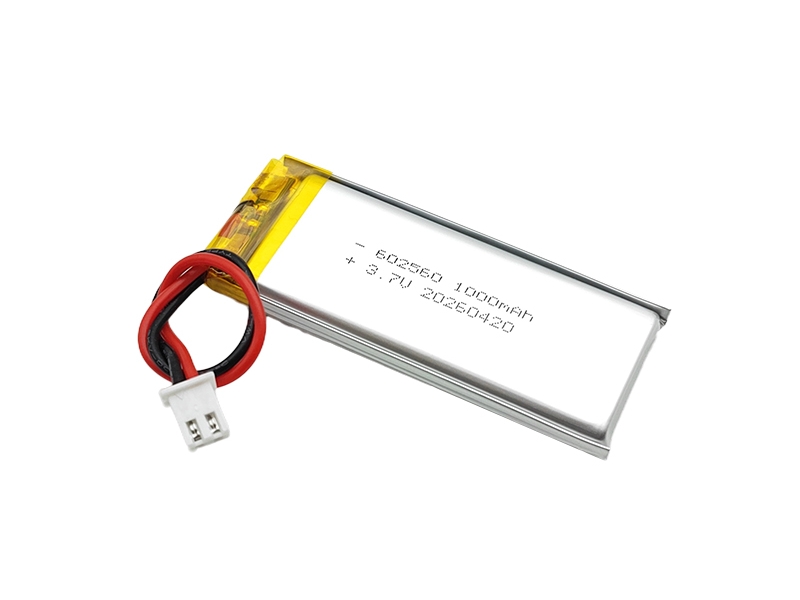

3.7V Lithium Polymer Battery Model: XL 1000mAh 3.7V

3.7V polymer lithium battery technical parameters (specific can be designed according to customer requirements - voltage/capacity/size/line)

Single battery model: 602560

· Single battery voltage: 3.7V

· Nominal voltage after battery pack combination: 3.7V

· Single battery capacity :1000mAh

· Battery combination: 1 string and 1 parallel

· Battery voltage range after combination: 3.0~4.2V

· Combined battery capacity: 1000mAh

· Battery power: 3.7W

· Battery pack size: 6*25.5*63mm

· Maximum discharge current: <1A

· Instant discharge current: 2~3A

· Maximum charging current: 0.2~0.5C

· Charge and discharge times: > 500 times

· Main chip: (Seiko, TI)

3.7V lithium polymer battery
